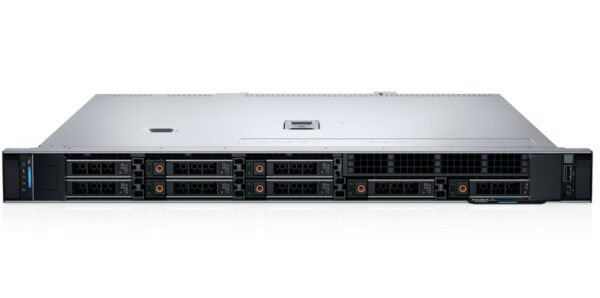

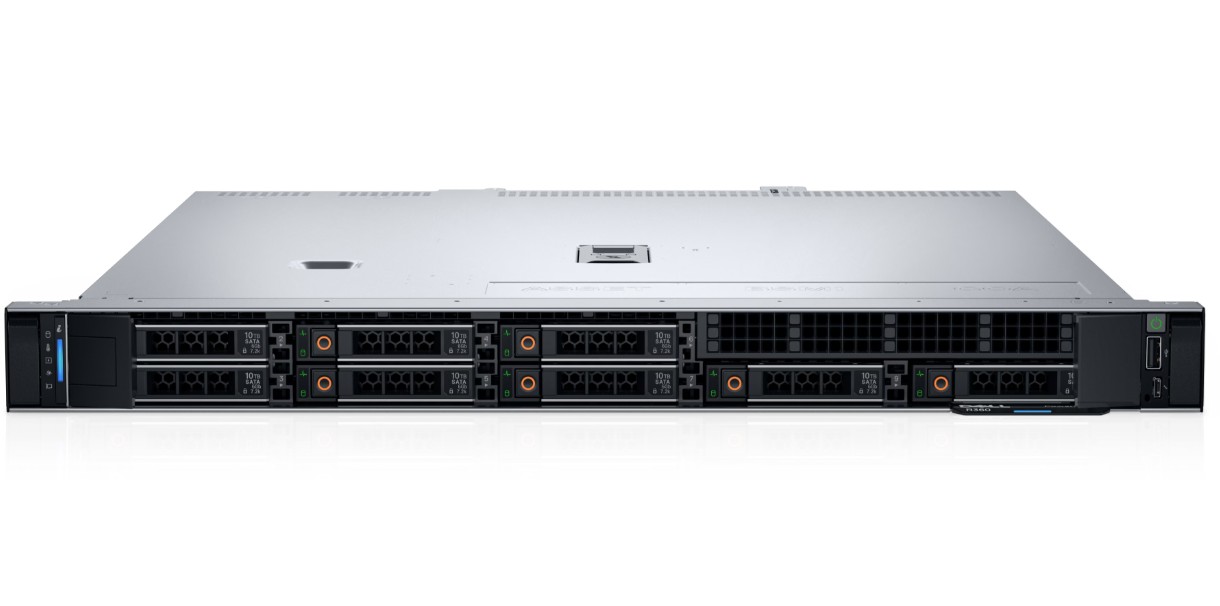

Máy Chủ Dell PowerEdge R360 8×2.5 Inch H355

Đặc điểm kỹ thuật

Thông số kỹ thuật Máy Chủ Dell PowerEdge R360

Processor

One Intel Xeon E-2400 series processor with up to 8 cores or One Intel Pentium G7400/G7400T processor with 2 cores

Memory

4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s

Supports unregistered ECC DDR5 DIMMs only

Storage controllers

Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front

Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs, USB

External HBAs (non-RAID): HBA355e Adpt

Software Controller: S160

Drive Bays

Front bays:Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB

Up to 8 x 2.5-inch SAS/SATA (SSD) max 61.44 TB

Power Supplies

600 W Platinum 100 — 240 VAC or 240 VDC, hot swap redundant

700 W Titanium 200 — 240 VAC or 240 VDC, hot swap redundant

Cooling Options

Air cooling

Fans

Up to 4 fans

Dimensions

Height – 42.8 mm (1.68 inches)

Width – 482.0 mm (18.97 inches)

Depth – 585.3 mm (23.04 inches) without bezel

Depth — 598.9 mm (23.57 inches) with bezel

Form Factor

1U rack server

Embedded Management

iDRAC9

iDRAC Direct

iDRAC RESTful API with Redfish

iDRAC Service Manual

Bezel

Security bezel or Optional Filter bezel

OpenManage Software

OpenManage Enterprise

OpenManage Power Manager plugin

OpenManage Service plugin

OpenManage Update Manager plugin

CloudIQ for PowerEdge plug in

OpenManage Enterprise Integration for VMware vCenter

OpenManage Integration for Microsoft System Center

OpenManage Integration with Windows Admin Center

Mobility

OpenManage Mobile

OpenManage Integrations

BMC Truesight

Microsoft System Center

OpenManage Integration with ServiceNow

Red Hat Ansible Modules

Terraform Providers

VMware vCenter and vRealize Operations Manager

Security

Cryptographically signed firmware

Data at Rest Encryption (SEDs with local or external key mgmt)

Secure Boot

Secured Component Verification (Hardware integrity check)

Secure Erase

Secured-core server

Silicon Root of Trust

System Lockdown (requires iDRAC9 Enterprise or Datacenter)

TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1 GbE LOM

GPU Options

1 x 60 W single-width GPU

Ports

Front Ports1 x iDRAC Direct (Micro-AB USB) port

1 x USB 2.0

Rear Ports1 x Dedicated iDRAC Ethernet port

1 x USB 2.0

1 x USB 3.2 Gen1

1 x VGA

1 x Serial

Internal Ports1 x USB 3.2 Gen1

PCIe

Up to two PCIe Gen4 slots on the Gen4 RiserSlot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile

Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile

One dedicated PCIe x8 slot on the system board for internal PERC

Operating System and Hypervisors

Canonical Ubuntu Server LTS

Microsoft Windows Server with Hyper-V

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

VMware ESXi
