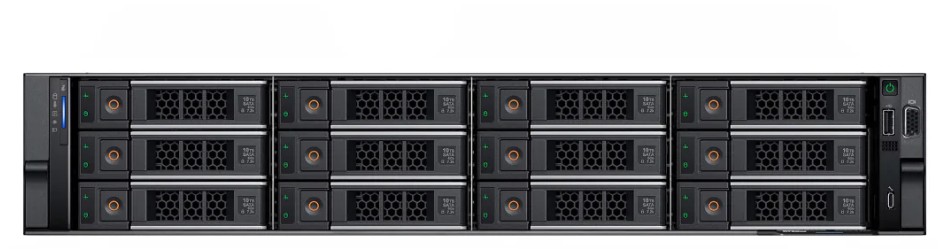

Máy Chủ Dell PowerEdge R750 GPU AI, ML, HPC

Feature

Technical Specification

Processor

Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor

Memory

32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s

Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max

Supports registered ECC DDR4 DIMMs only

Storage controllers

Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N

Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB

Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB

External PERC (RAID): PERC H840, HBA355E

Drive bays

Front bays:Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB

Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB

Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB

Rear bays:Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Power supplies

700 W Titanium HLAC/240 mixed mode

800 W Platinum AC/240 mixed mode

1100 W Titanium AC/240 mixed mode

1100 W DC -48 – -60 V

1400 W Platinum AC/240 mixed mode

1800 W Titanium HLAC/240 mixed mode

2400 W Platinum AC/240 mixed mode

2800 W Titanium HLAC/240 mixed mode

Cooling options

Air cooling, optional processor liquid cooling

Fans

Standard fan/High performance SLVR fan/High performance GOLD fan

Up to six hot plug fans

Dimensions

Height – 86.8 mm (3.41 inches)

Width – 482 mm (18.97 inches)

Depth – 758.3 mm (29.85 inches) – without bezel

772.14 mm (30.39 inches) – with bezel

Form Factor

2U rack server

Embedded mgmt

iDRAC9

iDRAC Service Module

iDRAC Direct

Quick Sync 2 wireless module

Bezel

Optional LCD bezel or security bezel

OpenManage™ Software

OpenManage Enterprise

OpenManage Power Manager plugin

OpenManage SupportAssist plugin

OpenManage Update Manager plugin

Mobility

OpenManage Mobile

Integrations and Connections

OpenManage IntegrationsBMC Truesight

Microsoft System Center

Red Hat Ansible Modules

VMware vCenter and vRealize Operations Manager

OpenManage ConnectionsIBM Tivoli Netcool/OMNIbus

IBM Tivoli Network Manager IP Edition

Micro Focus Operations Manager

Nagios Core

Nagios XI

Security

Cryptographically signed firmware

Secure Boot

Secure Erase

Silicon Root of Trust

System Lockdown (requires iDRAC9 Enterprise or Datacenter)

TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1 GbE LOM

Network Options

1 x OCP 3.0 (x8 PCIe lanes)

GPU Options

Up to two double-width 300 W,

Or, Four single-width 150 W,

Or, Six single-width 75 W accelerators

Ports

Front Ports:1 x USB 2.0

1 x VGA

1 x Dedicated iDRAC Direct micro-USB

Internal Ports

1 x USB 3.0

Rear Ports1 x USB 2.0

1 x USB 3.0

1 x VGA (optional for liquid cooling configuration)

1 x Serial port (Optional)

2 x RJ45

PCIe

Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules

Operating System and Hypervisors

Canonical Ubuntu Server LTS

Citrix Hypervisor

Microsoft Windows Server with Hyper-V

SUSE Linux Enterprise Server

Red Hat Enterprise Linux

VMware ESXi
