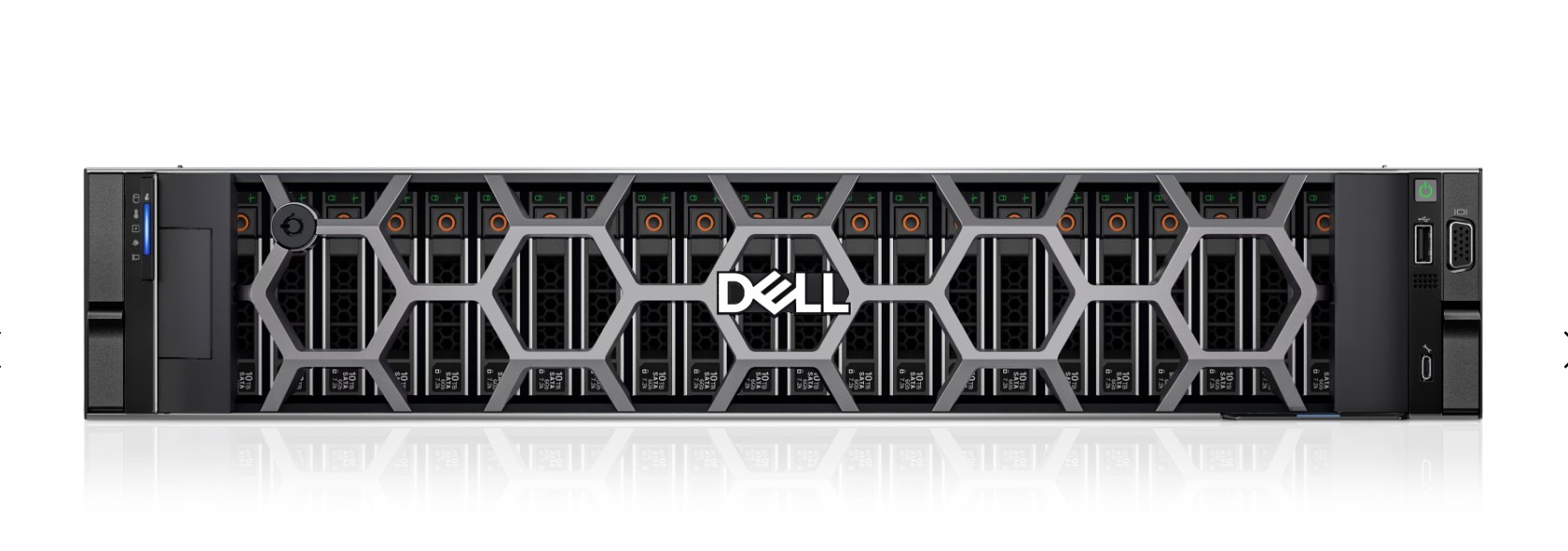

Chassis Dell PowerEdge R760 16×2.5-inch – Dual, Hot-plug, Power Supply Redundant (1+1), 800W
-
Mainboard Dell PowerEdge R760
-
RAID Controller PERC H755
-
1 x Intel Xeon Silver 4510 ( 12 cores, 2.4GHz, 30MB Cache, 150W )
-
1 x Bộ Nhớ RAM DDR5 16GB 4800MHz ECC RDIMM
-
1 x Ổ Cứng HDD Dell 1.2TB 2.5inch SAS 12Gb/s 10K RPM
-
1 x Dell PowerEdge R760 R760xs R560 2U Standard Heatsink
-
1 x Tray Dell 2.5inch for 14G/15G Server 0DXD9H DXD9H
|
Features |
Technical Specifications |
|
|
Processor |
Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology |
|
|
Memory |
32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s Supports registered ECC DDR5 DIMMs only |
|
|
Storage controllers |
Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB External HBA (non-RAID): HBA355e Software RAID: S160 |
|
|
Drive Bays |
Front bays:Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays:Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
|
|
Power Supplies |
2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1100 W LVDC -48 — -60 VDC, hot swap redundant 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant |
|
|
Cooling Options |
Air cooling Optional Direct Liquid Cooling (DLC) Note:DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. |
|
|
Fans |
Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans Up to 6 hot plug fans |
|
|
Dimensions |
Height – 86.8 mm (3.41 inches) Width – 482 mm (18.97 inches) Depth – 772.13 mm (30.39 inches) with bezel 758.29 mm (29.85 inches) without bezel |
|
|
Form Factor |
2U rack server |
|
|
Embedded Management |
iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Quick Sync 2 wireless module |
|
|
Bezel |
Optional LCD bezel or security bezel |
|
|
OpenManage Software |
CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin |
|
|
Mobility |
OpenManage Mobile |
|
|
OpenManage Integrations |
BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow Red Hat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager |
|
|
Security |
Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
|
Embedded NIC |
2 x 1 GbE LOM card (optional) |
|
|
Network options |
1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
|
|
GPU Options |
Up to 2 x 350 W DW and 6 x 75 W SW |
|
|
Ports |
Front Ports1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA |
Rear Ports1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) |
|
Internal Ports1 x USB 3.0 (optional) |
||
|
PCIe |
Up to eight PCIe slots:Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length Slot 3: 1 x16 Gen4 Low profile, Half length Slot 4: 1 x8 Gen4 Full height, Half length Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length Slot 6: 1 x16 Gen4 Low profile, Half length Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length |
|
|
Operating System and Hypervisors |
Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
|
