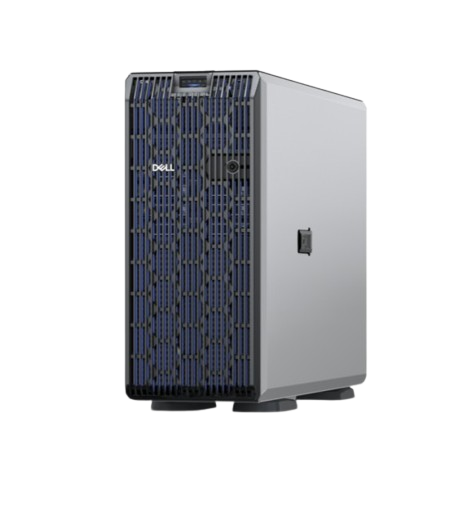

Máy Chủ Dell PowerEdge T560 8×3.5 Inch

Đặc điểm kỹ thuật

Thông số kỹ thuật Máy Chủ Dell PowerEdge T560

Processor

Up to two 4th Generation Intel® Xeon Scalable processor, with up to 32 cores per processor and optional Intel® QuickAssist Technology

Memory

• 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s

• Supports registered ECC DDR5 DIMMs only

Storage controllers

• Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i

• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB

• External HBA (non-RAID): PERC HBA355e

• Software RAID: S160 (for NVMe drives only)

Drive Bays

Front bays:

• Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB

• Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB

• Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB

• Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB

• Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB

• Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB

Power Supplies

• 2400 W Platinum 100—240 VAC or 2400 W 240 VDC, hot swap redundant

• 1800 W Titanium 200—240 VAC or 1800 W 240 VDC, hot swap redundant

• 1400 W Platinum 100—240 VAC or 1400 W 240 VDC, hot swap redundant

• 1100 W Titanium 100—240 VAC or 1100 W 240 VDC, hot swap redundant

• 1100 LVDC -48 — (-60) VDC, hot swap redundant

• 800 W Platinum 100—240 VAC or 800 W 240 VDC, hot swap redundant

• 700 W Titanium 200—240 VAC or 700 W 240 VDC, hot swap redundant

• 600 W Platinum 100—240 VAC or 600 W 240 VDC, hot swap redundant

Cooling Options

Air cooling

Fans

• Up to eight Standard (STD) fans or High performance (HPR) fans

Dimensions

• Height — 464.0 mm (18.26 inches) (with feet)

508.8 mm (20.03 inches) (with caster wheels)

446.0 mm (17.60 inches) (without feet)

• Width — 200.0 mm (7.87 inches)

• Depth — 678.2 mm (26.70 inches) (with bezel)

660.6 mm (26 inches) (without bezel)

Form Factor

4.5U tower server

Embedded Management

• iDRAC9

• iDRAC Direct

• iDRAC RESTful API with Redfish

• iDRAC Service Module

• Quick Sync 2 wireless module

Bezel

Optional security bezel

OpenManage Software

• OpenManage Enterprise

• OpenManage Power Manager plugin

• OpenManage Service plugin

• OpenManage Update Manager plugin

• CloudIQ for PowerEdge plug in

• OpenManage Enterprise Integration for VMware vCenter

• OpenManage Integration for Microsoft System Center

• OpenManage Integration with Windows Admin Center

Mobility

OpenManage Mobile

OpenManage Integrations

• BMC Truesight

• Microsoft System Center

• OpenManage Integration with ServiceNow

• Red Hat Ansible Modules

• Terraform Providers

• VMware vCenter and vRealize Operations Manage

Security

• Cryptographically signed firmware

• Data at Rest Encryption (SEDs with local or external key mgmt)

• Secure Boot

• Secure Erase

• Secured Component Verification (Hardware integrity check)

• Silicon Root of Trust

• System Lockdown (requires iDRAC9 Enterprise or Datacenter)

• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1GbE LOM on Planar

Network Options

1 x OCP x8 card 3.0

Note: The system allows both LOM on planar and OCP card to be installed on the system.

GPU Options

Up to 2 x 300 W DW or 6 x 75 W SW

Ports

Front Ports

• 1 x USB 2.0

• 1 x USB 3.0

• 1 x iDRAC Direct (Micro-AB USB) port

Rear Ports

• 1 x USB 2.0

• 1 x USB 3.0

• 1 x Serial port (optional)

• 1 x Dedicated iDRAC (RJ45) port

• 1 x VGA port

• 2 x Ethernet ports

Internal Ports

• 1 x USB 3.0 (optional)

PCIe

Up to six PCIe slots:

• Slot 1: x16 Gen5 Full height, Full length

• Slot 2: x16 Gen5 Full height, Full length

• Slot 3: x16 Gen4 Full height, Half length

• Slot 4: x16 Gen4 Full height, Half length

• Slot 5: x16 (x8 lanes) Gen4 Full height, Half length

• Slot 6: x16 Gen4 Full height, Half length

Operating System and Hypervisors

• Canonical Ubuntu Server LTS

• Microsoft Windows Server with Hyper-V

• Red Hat Enterprise Linux

• SUSE Linux Enterprise Server

• VMware ESXi
